& does relevant recommendations: 【 non-metallic compensator fabric, rubber compensator, duct compensator 】 is gongyi city full state pipeline equipment co., LTD. The main business of our company has been made as a special equipment manufacturing license and ISO quality management system certification of qualified companies, the company management concept: the factory in order to "customer needs is our goal" principle, wholeheartedly for the customers with excellent products, reasonable prices, fast delivery cycle, professional technical support and perfect after-sales service. In the future, full state is full of confidence and hope, was determined in a more high quality brand and good service, sincere cooperation with customers at home and abroad, to do the northern area of the thermal compensation smoke duct equipment industry's first brand.

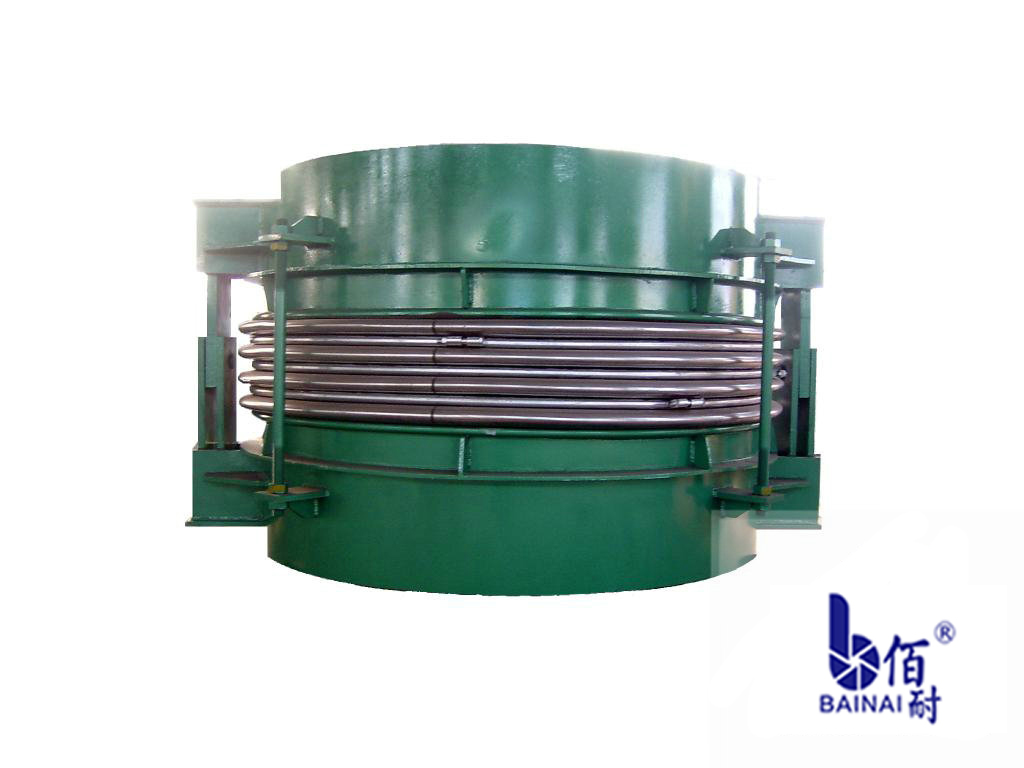

Hinge corrugated compensator is introduced
Hinge corrugated compensator has a universal ring, in the weeks to have two perpendicular to the hinge structure, the angular displacement of pipeline to make up for any plane.
Connection mode: 1, the flange connection type; 2, to take over the connection
Products Angle to the compensation amount, plus or minus 4 degrees - + 9 degrees

Hinge corrugated compensator installation considerations
1, to make the hinge corrugated compensator compensation effect, must set a fixed bracket on both ends of the compensator, prevent the pipeline from internal pressure thrust affected by offshoring.
2, one end of the compensator (one-way compensation directly buried type compensator dead end) is near the end of the fixed bracket, with live head compensation pipeline compensator.
3, according to the amount of compensation to set the distance of two fixed bracket, the compensation is generally not greater than the pipe diameter.
4, in the process of pressure testing to compensator can not stretch.
